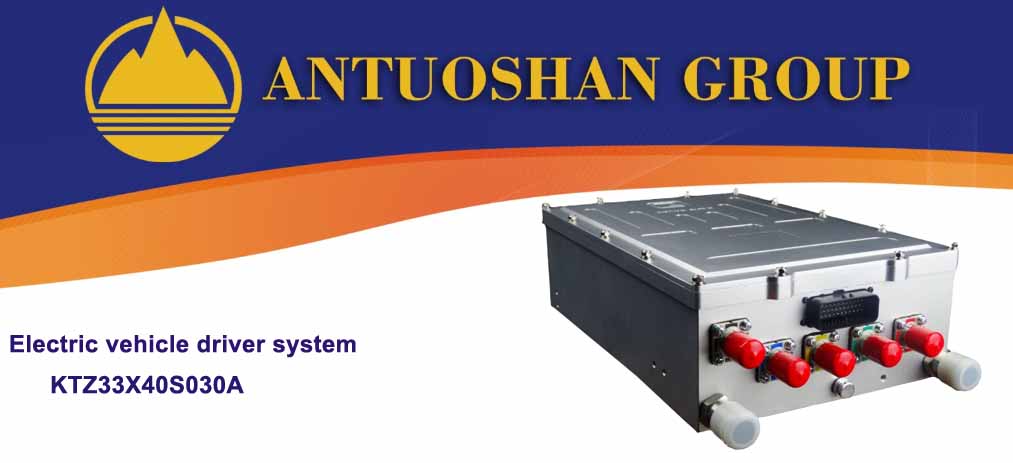

30kW Controller for New-energy Electric Vehicle
Controller characteristics:
1. suitable for automotive applications, professional matching design, speed range 0.1~600Hz;
2. support AC induction motor, permanent magnet synchronous motor, brushless DC motor and other motors;
3. high performance vector control, integrated parameter adaptation, flux weakening, over modulation, MTPA and other algorithms, compatible with VF, SVC, FVC and other control;
4. safe and reliable, long life design;
5., wide working environment, temperature -40~65 degrees celsius;
6. high protection level >IP65.
30kW new-energy vehicle controller technical parameters:
1. suitable for automotive applications, professional matching design, speed range 0.1~600Hz;
2. support AC induction motor, permanent magnet synchronous motor, brushless DC motor and other motors;
3. high performance vector control, integrated parameter adaptation, flux weakening, over modulation, MTPA and other algorithms, compatible with VF, SVC, FVC and other control;
4. safe and reliable, long life design;
5., wide working environment, temperature -40~65 degrees celsius;
6. high protection level >IP65.
30kW new-energy vehicle controller technical parameters:
| Product model | Applicable motor type | Input voltage range（Vdc） | Rated input voltage | Rated output current | Maximum output current | Adaptive motor power | Output frequency range | Protection level | Outline size | Cooling method | Applicable vehicle type |
| KTZ33X40S030A | Permanent magnet synchronous motor | 280-410VDC | 336VDC | 170A | 400A | 30～50kW | 0.6~600Hz | Ip67 | 416*256*123 | water-cooling | Logistics vehicle |
