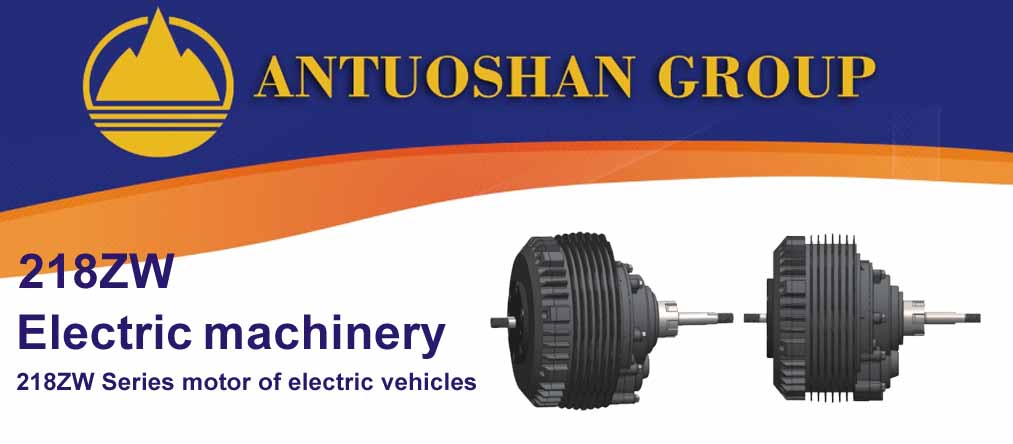

218ZW series Motor for Electric Motorcycle
Main characteristics：
Unique pole and slot fit design,small cogging torque,smooth operation;
The stator and rotor are designed with double sine,the back EMF is close to the pure sine wave,and the back EMF waveform distortion rate is up to 0.6%;
Wide load and wide speed range has a very high efficiency indicators,more energy saving and environmental protection,the rated load aging rate of about 91%.Energy efficiency index of "30253-2013"(GB)variable frequency drive permanent magnet synchrous motor energy efficiency rating standard “Ⅱ” class.
The series motor with mechanical reducer,can make the motor at low speed,has the characteristics of super torque,especially suitable for mountain electric vehicles and police electric vehicles;
The series motor is small in size,light in weight and high in power.It is suitable for large electric vehicle with large wheels.
Main technical parameters
Note: the parameters in the table are for selection and can be adjusted according to the needs of users.
Unique pole and slot fit design,small cogging torque,smooth operation;
The stator and rotor are designed with double sine,the back EMF is close to the pure sine wave,and the back EMF waveform distortion rate is up to 0.6%;
Wide load and wide speed range has a very high efficiency indicators,more energy saving and environmental protection,the rated load aging rate of about 91%.Energy efficiency index of "30253-2013"(GB)variable frequency drive permanent magnet synchrous motor energy efficiency rating standard “Ⅱ” class.
The series motor with mechanical reducer,can make the motor at low speed,has the characteristics of super torque,especially suitable for mountain electric vehicles and police electric vehicles;
The series motor is small in size,light in weight and high in power.It is suitable for large electric vehicle with large wheels.
Main technical parameters
Serial number
|
Motor specification
|
Rated voltage
(VDC)
|
Rated torque
(N·m)
|
Rated speed
(r/min)
|
Rated power
(W)
|
Peak torque
(N·m)
|
peak power
(W)
|
system efficiency
(%)
|
1
|
218ZW-J6025411NA
|
60
|
11.0
|
2500
|
3000
|
28.0
|
5000
|
86.3
|
218ZW-J6025411NA
|
60
|
15.0
|
2500
|
4000
|
38.0
|
6000
|
86.8
|
|
2
|
218ZW-J6025411NA
|
72
|
11.0
|
2500
|
3000
|
28.0
|
5000
|
87.0
|
218ZW-J6025411NA
|
72
|
15.0
|
2500
|
4000
|
38.0
|
6000
|
87.2
|
|
3
|
218ZW-J6025411NA
|
72
|
15.0
|
3000
|
5000
|
38.0
|
7500
|
87.3
|
